Butyl Aluminum Foil Tape: field notes from rooftops, ducts, and job trailers

If you’ve ever chased a roof leak at 6 a.m. or sealed a sweating duct above a hot data hall, you already know why pros keep Butyl Aluminum Foil Tape within arm’s reach. It’s that rare combination of instant grab, creep resistance, and weather armor that just…works. To be honest, the product segment is getting smarter—improved butyl chemistry, better foil dead-softness, and clearer certifications—so it’s worth a quick, practical update from the field.

Where the market is heading

Three trends keep popping up in specs and RFQs: high UV endurance for solar/HVAC rooftops, low-temperature tack for winter installs, and compatibility with single-ply membranes (EPDM/TPO/PVC). Many customers say they also want color-coordination with roof flashings—surprisingly common on visible penetrations near parapets. That’s where accessories like EPDM/TPO boots and color-matched trims enter the chat.

Specification snapshot (real-world values)

Backing foil	Dead-soft aluminum, ≈ 30–60 μm
Adhesive	Butyl rubber, solvent-free, high-solids
Total thickness	≈ 0.5–1.5 mm (options)
Peel adhesion (PSTC/ASTM D3330)	≥ 2.5–4.5 N/cm on metal, lab values; field may vary
Service temperature	-40°C to +90°C continuous; short peaks to 120°C
WVTR (ASTM E96)	Very low permeance; vapor barrier class per formula
UV/Weathering (ASTM G154)	Pass typical 1000–2000 h cycles
Expected life	10–20 years on prepared substrates

How it’s built and verified (short process flow)

Materials: refined butyl compound + dead-soft Al foil + PE or paper liner; optional scrim.
Compounding: banbury/kneader, plasticizers and fillers tuned for creep resistance.
Lamination: hot-melt coat or calender, then foil lamination; precision slitting.
Testing: peel (PSTC 101/ASTM D3330), tack (PSTC 16), tensile (ASTM D3759), WVTR (ASTM E96), UV (ASTM G154), flame/smoke (UL 723 where required).
QA: adhesion on galvanized steel, aluminum, and single-ply membranes; cold-flex at -20°C.
Docs: CoA, MSDS, and if applicable ISO 9001 plant certification.

Where pros use it

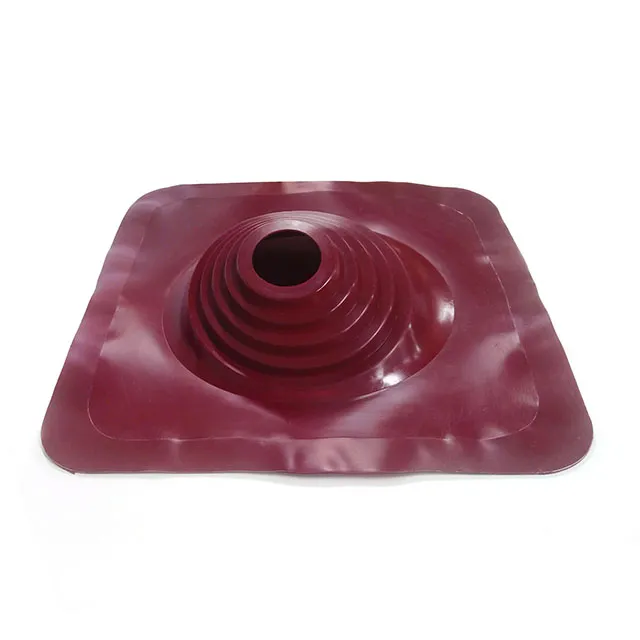

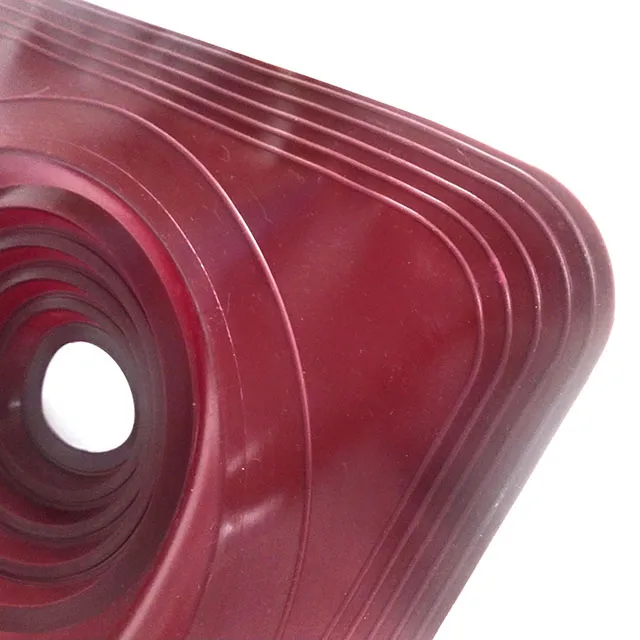

Roof seams, skylight perimeters, HVAC ducts, cold storage panel joints, RV/van conversions, gutter laps, solar racking penetrations, and cable entry points. For penetrations, many crews pair Butyl Aluminum Foil Tape with flexible roof boots for a belt-and-suspenders seal. Side note: the BOOT PIPE line (EPDM/PVC/TPO/Silicone) can be color-matched—black, white, gray, brick, even RR11 dark green or RR40 silver—handy when aesthetics matter.

Customization options

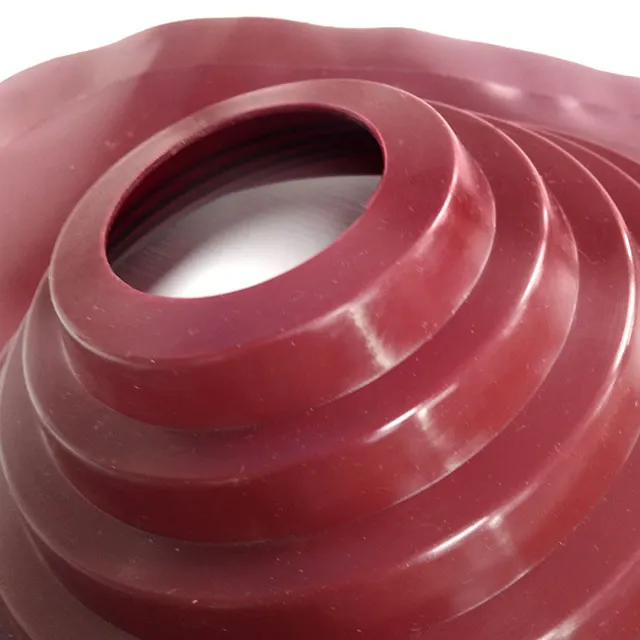

Widths 50–600 mm, foil gauges 30–80 μm, embossed or smooth foil, color-coated foil to match roof accessories, printed liners, and core IDs for automated lines. Pipe opening sizes on boots can be trimmed on-site thanks to clearly marked diameters—simple but effective.

Vendor snapshot (indicative)

Vendor	Foil gauge	Temp rating	Colors	Certs	Notes
Gardepota (Shijiazhuang, Hebei; Room 1314, Block A, Huaye Bldg., No.388 Xinhua Rd.)	30–60 μm	-40 to 90°C	Black/White/Gray + RR series	ISO 9001; test to ASTM/PSTC	OEM/ODM; boots + tape pairing
Typical US brand	40–70 μm	-35 to 100°C	Alu/Silver	UL 723, ASTM	Strong distributor network
Typical EU brand	30–60 μm	-40 to 90°C	Alu + painted	CE where applicable	Broad membrane compatibility

Quick case notes

Cold-storage distribution hub: switching to Butyl Aluminum Foil Tape with thicker foil cut vapor ingress; energy logger showed ≈7% drop in compressor runtime over 30 days.
Rooftop PV retrofit: tape + color-matched silicone boot around conduit; post-storm inspection found zero uplift; peel on site averaged 3.8 N/cm on anodized aluminum (ASTM D3330 method).

Certifications and standards to ask for

Look for test reports referencing PSTC 101/16, ASTM D3330/D3759/E96/G154, and UL 723 for flame/smoke in mechanical rooms. An ISO 9001 plant and a clear CoA help, too. Installation tip: clean, dry, primed substrates—press with a roller; don’t stretch the foil.

Authoritative citations

PSTC 101 and PSTC 16, Pressure Sensitive Tape Council Standards.
ASTM D3330/D3330M – Peel Adhesion of Pressure-Sensitive Tape.
ASTM E96/E96M – Water Vapor Transmission of Materials.
ASTM G154 – Operating Fluorescent UV Lamp Apparatus for Exposure of Nonmetallic Materials; UL 723 – Surface Burning Characteristics.
