Need 1 1 4 stainless steel screws, strong and rustproof?
Field Notes on 1-¼” Fastening: What Buyers Really Need to Know

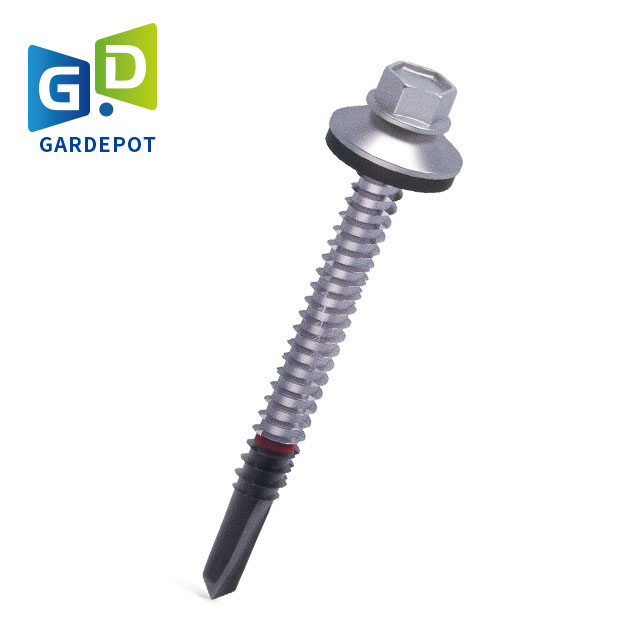

1 1 4 stainless steel screws sound simple, but the market is anything but. After a decade of walking job sites and combing through lab reports, I’ve learned that the best-performing option in this size class is usually a bi‑metal design: stainless where it counts for corrosion, hardened steel where you need bite. Gardepota’s Bi‑Metal Screw is a good example—stainless head and shank up top, self‑drilling/self‑tapping carbon or alloy steel tip below. It’s a clever marriage, and, to be honest, it solves the two headaches that installers complain about most: red rust and slow drilling.
Why this build works (in the real world)
The stainless head stays exposed to air and weather—so no ugly rust rings around panels—while the hardened point drills fast into steel, aluminum, or even composite decking. Many customers say they see fewer cam‑outs and a cleaner seat under hex‑washer heads. And surprisingly, the mixed-metal approach doesn’t mean mixed results in salt spray; with the right coating on the point, it’s tough enough for coastal facades.
Key specifications (typical for 1‑¼” length)
| Product Name | Bi‑Metal Screw (1‑1/4” length) |
| Head/Shank Material | Stainless steel 304 or 316 (per ISO 3506-1) |
| Drill/Tap Tip | Hardened carbon steel (e.g., C1022) or alloy steel, HRC ≈ 52–56 |
| Diameters | #8, #10, #12 (others on request) |
| Head Styles | Hex‑washer, pan, countersunk; EPDM or bonded washers optional |
| Coatings (tip) | Zinc, Ruspert, or similar per ISO 4042; RoHS compliant |
| Drill Capacity | Up to ≈ 2.0–4.8 mm steel sheet (real‑world use may vary) |
| Standards Reference | SAE J78, IFI‑113, ISO 3506-1, ASTM B117 (test) |
Process flow (how these are made right)
- Materials: 304/316 SS wire for head/shank; C1022/alloy wire for point.
- Methods: Cold‑heading stainless; friction welding the stainless to the hardened drill section; rolling threads; point forming; coating.
- Testing: Torque and drill‑time per SAE J78/IFI‑113, salt spray per ASTM B117 (≥ 1,000 h on coated tips is common), hardness (HRC) verification.
- Service life: ≈ 15–25 years in ISO 9223 C3 atmospheres; select 316 and premium coatings for C4/C5 coastal or industrial zones.
- Certifications: ISO 9001 QMS; material certs; RoHS/REACH declarations available.
- Origin & support: Room 1314, Block A, Huaye Building, No. 388 Xinhua Road, Qiaoxi District, Shijiazhuang, Hebei.
Where they shine
Roofing and cladding, HVAC curb mounts, solar racking to sheet steel, food‑grade interiors (use 316), marine hardware, and general metal‑to‑metal assemblies where appearance matters. Installers tell me the 1‑¼” length hits a sweet spot for thin stacks with strong bite. If you need more pull‑out, step up diameter before jumping length—just a tip.
Vendor snapshot (what buyers compare)
| Vendor | Lead Time | Coating/Hours (B117) | Certs | MOQ |
|---|---|---|---|---|
| Gardepota (Bi‑Metal Screw) | ≈ 3–5 weeks | Premium Ruspert ≈ 1,000–1,500 h | ISO 9001, RoHS docs | Around 20–50k pcs |
| Generic Importer | 4–8 weeks | Zinc ≈ 120–240 h | Basic COC | 10k–25k pcs |
| Regional Distributor | Stock/2 weeks | Mixed lots, ≈ 240–720 h | ISO 9001 (varies) | Case lots |
Mini case study: coastal retrofit
A warehouse on a C4 coastline swapped mixed hardware for 1 1 4 stainless steel screws (bi‑metal, 316/ Ruspert tip). Installers reported ≈ 30% faster deck penetration vs. previous stainless-only fasteners, and after 12 months there was zero red rust around the head seats. Lab checks hit 1,200 h ASTM B117 on the drill points. Not bad, given the salt fog two blocks from the pier.
Customization
Need a color‑matched head, larger washer OD, or a longer flute for thicker stacks? Gardepota can tune flute geometry, washer durometer, and switch to 316 for aggressive sites. For food plants, we often see 1 1 4 stainless steel screws with pan heads and nylon patches to cut vibration‑backout.
Final word
If your spec calls for 1 1 4 stainless steel screws but you still need drilling speed, bi‑metal is the practical compromise—clean looks, fast install, serious corrosion resistance. Just verify standards and test data; your roof will thank you.
Authoritative citations
- ISO 3506-1:2020 — Mechanical properties of corrosion‑resistant stainless steel fasteners.
- SAE J78 — Self‑Drilling Tapping Screws (dimensional and performance requirements).
- IFI‑113 — Self‑Drilling Tapping Screws (industry standard practices).
- ASTM B117 — Standard Practice for Operating Salt Spray (Fog) Apparatus.
- ISO 9223 — Corrosion of metals — Corrosivity of atmospheres — Classification.
